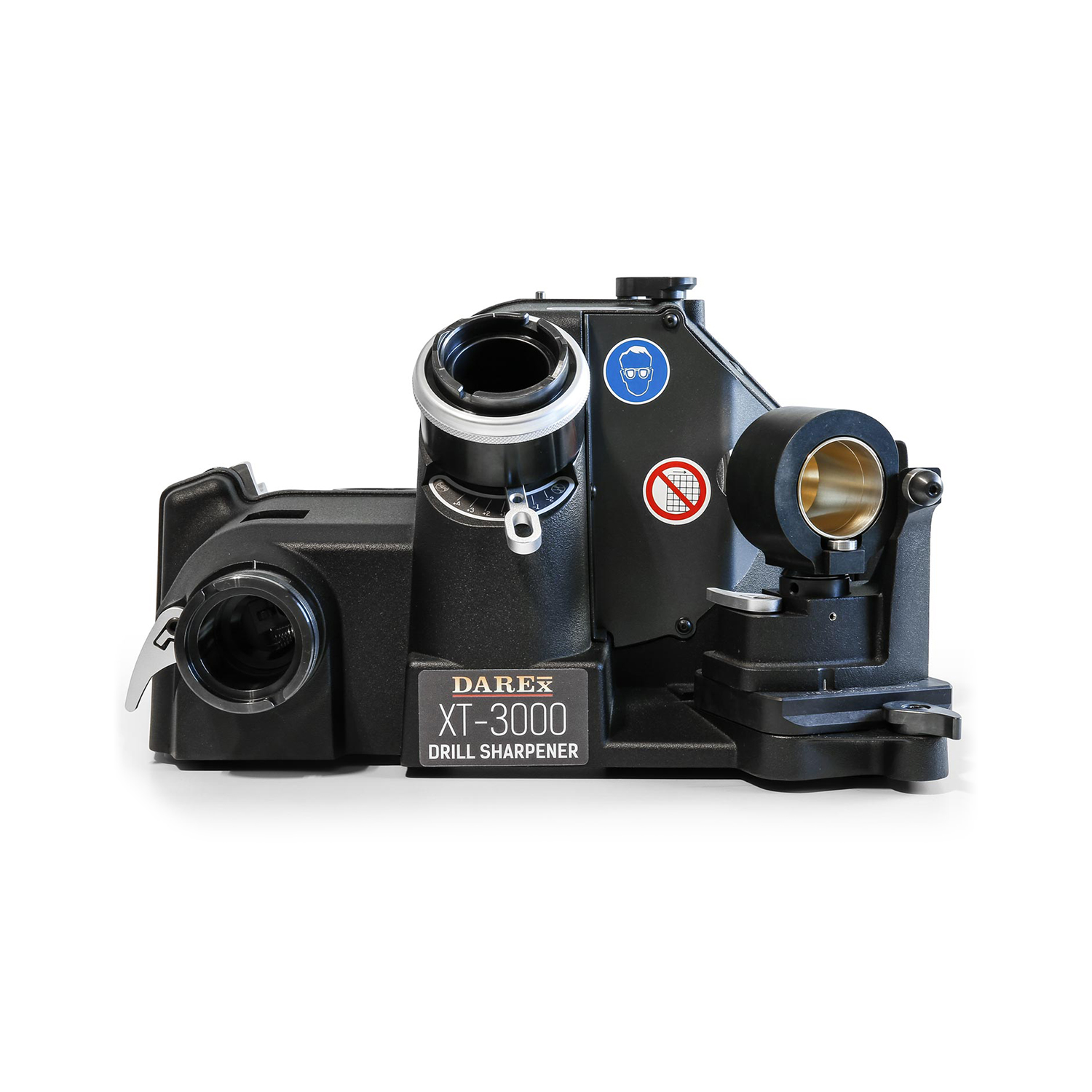

XT-3000 Manual Drill Sharpener

Description

XT-3000 Manual Drill Sharpener Base Unit Specifications:

Ideal For: Shops that sharpen a variety of drill sizes and styles and want the advantages of a highly advanced manual drill and tool sharpener

Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch)

Acceptable drill length: Unlimited maximum, two inch minimum.

Duty Rating: Heavy duty

Grit Removal System: Optional vacuum

Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm)

Operation Mode: Manual

Machine Weight: 68 lbs (31 kg)

Point Angles Sharpened: 118°–150° (90° option available)

Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm)

Point Styles Sharpened: Standard conic and split point

Sharpening Wheel Included:

Borazon (CBN) for HSS & cobalt (diamond option for carbide available)

Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines)

Options Available:

• Large drill attachment (21–30 mm)
• XY Table attachment
• Countersink attachment
• Brad point attachment
• Step drill attachment
• 90°–120° attachment
• Machine cover
• Vacuum (extends warranty by 1 year)
• 180-grit diamond wheel
• Diamond split point wheel
• 3–12 mm left-hand chuck
• 2–21 mm left-hand chuck

Warranty

A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.
