SKU: SA10173AF
$598.00

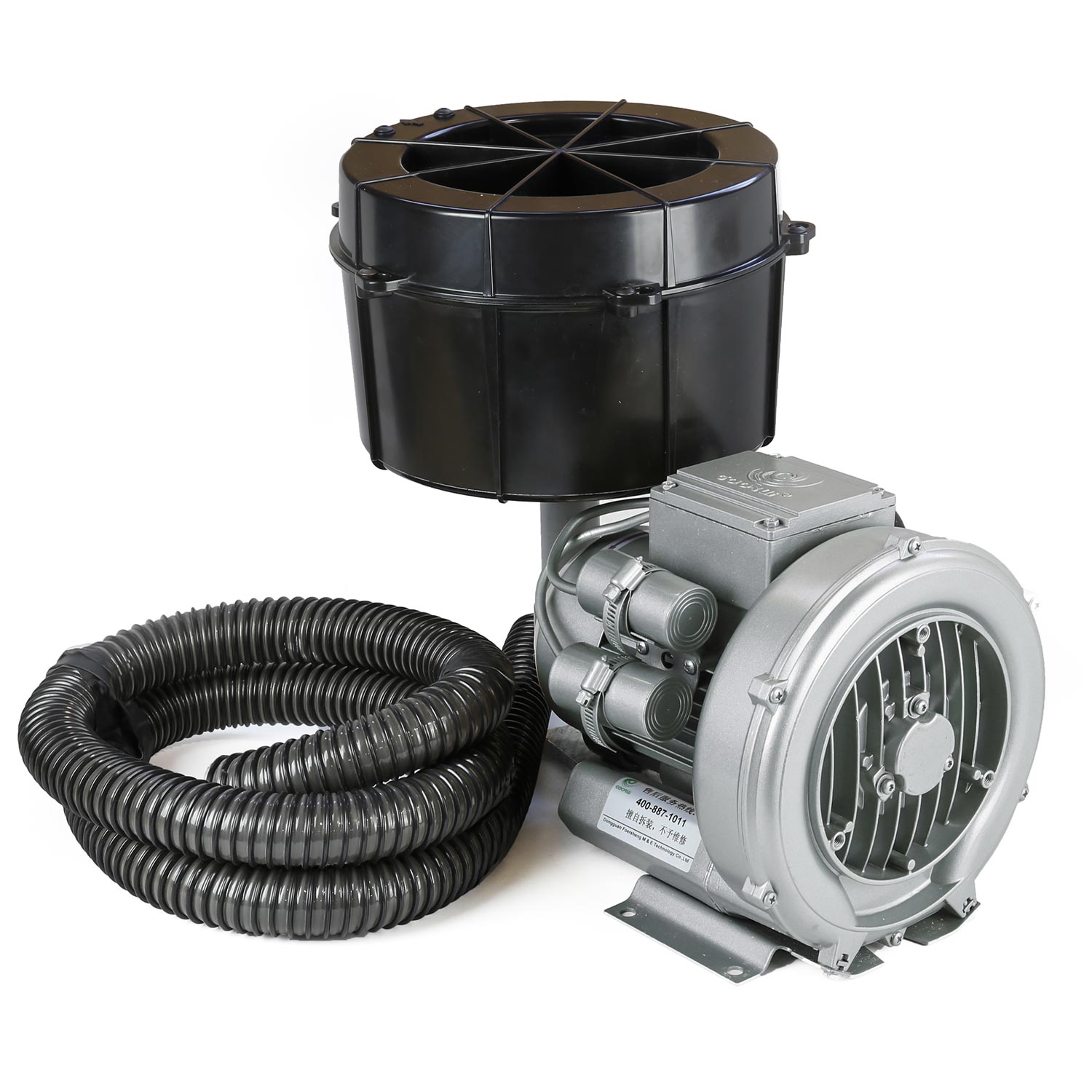

Complete Vacuum Assembly for the 115V V-390, XT-3000, XT-3000 Auto, and XPS-16+ industrial drill bit sharpeners.
Keeping your Darex drill sharpener free of grit is the single most important thing you can do to ensure that your sharpener remains in top condition, therefor minimizing repair costs for your industrial drill sharpener down the road. Our regenerative blower is quiet, powerful and connects directly to your sharpener. This vacuum is also rated for continuous duty and comes equipped with a HEPA grade filter to keep you safe from airborne grit. We’re so confident that our vacuum will keep your Darex drill sharpener clean, we’ll even add an extra year to your warranty if you purchase our vacuum along with your sharpener. (XPS-16+ excluded)
Need a powerful and quiet continuous duty vacuum for another application in your shop? Our regenerative blower can be adapted to meet your needs. Please reach out to our sales team at dxisales.com today with any questions.
Technical Specs
115v /60hz Motor power = .7 (kw) or .94Hp
Air Flow = 100 (m3/h)
Vacuum = -.150 (mBar)
Pressure = 170 (mBar)
Sound = 57 (Db) motor only – 70 (Db) as plumbed as a system utilizing a sound suppressor on the exhaust output
Air Filter
PP12086NF – Air Filter specifications: 4.75” ID x 7.88” OD x 4.81” H = 3.5SF of area
Radial Fin Design
Hepa Class: H13
HEPA H13: pass up 0.05% of 0.1-micron particles per liter of air
Retention: >99.95%
Weight: 12.7 kg
Dimensions: 54.61 x 41.91 x 38.1 cm
General Maintenance
Keep system/filter clean and free of grit build up. Filter and Muffler should be removed and inspected every 3-6 months, if heavily soiled it should be replaced. Replacing every 6 months is recommended.
Do not alter vacuum hose length and when installing make sure the hose does not have kinks or extreme bends that may collect metal dust
Complete Vacuum Assembly for 115V sharpeners only. Purchase of a vacuum extends warranty by 1 year.
